Technical data
| Max. container volume (ml) | 1500 |
| Max. capacity (ml) | 1200 |
| Container color | white, transparent |
| Temperature range (°C) | +5 / +30 |
| Max. working pressure (bar) | 2.5 |
| Nozzle | Fan spray angle 110° PA (80 682) |
| Spray pattern | Flat spray angle 110 ° at 2.5 bar |
| Spray quantity (ml/min) | 450 |
| Spray width (m) | 0.8 |
| Color code | gray |
| Materials | |
| Container | HDPE (high density polyethylene) |
| Seals | Viton® (FKM) |
| Pump head | PA |
| Valve rod + springs | brass / stainless steel |
| Nozzle | PA 6 |
| Height (mm) | 325 |
| Base area lxb (mm) | 230 x 120 |
| Weight (kg) | 0.45 |
Specification

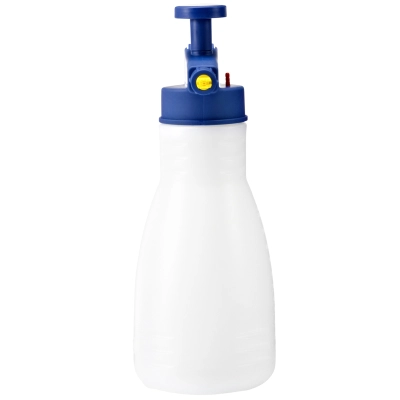

- Pressol model 06912015
- HDPE tank with scale in ml
- Suitable for spray pattern and swivel capability are the following nozzles: standard and swivel nozzle made of brass (80 680) + standard nozzle with plastic adjusting nut PA (80 685) see nozzle series Sprayfixx Classic (80 688)
- Seals Viton® FKM
- manual pressure build-up with a combined pressure relief valve and vent
- With EAN code
Special features
- Suitable for low viscosity mineral oils, provided that the materials of the spray nozzle are resistant to these media
- Application-specific use by different nozzles
- UV stable
- Color coding on the container and pump button gray
Specifications
- SKU 5402015
- HS Code 84248970900
- Country of origin CZ
- Pressol Reference 06912015
- Brand Pressol
