LD OILPUMP 5:1 STUBBY
SKU
3070025

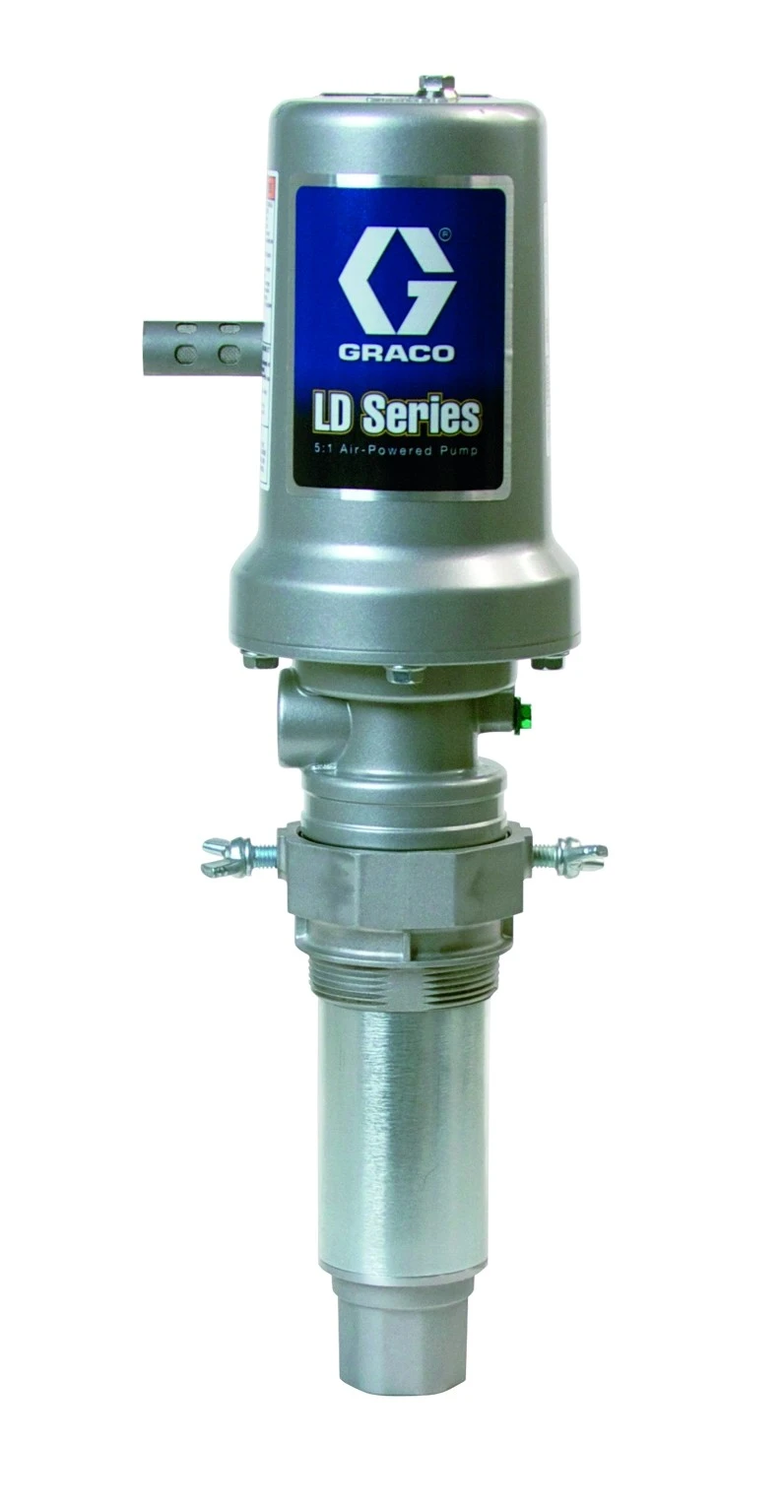

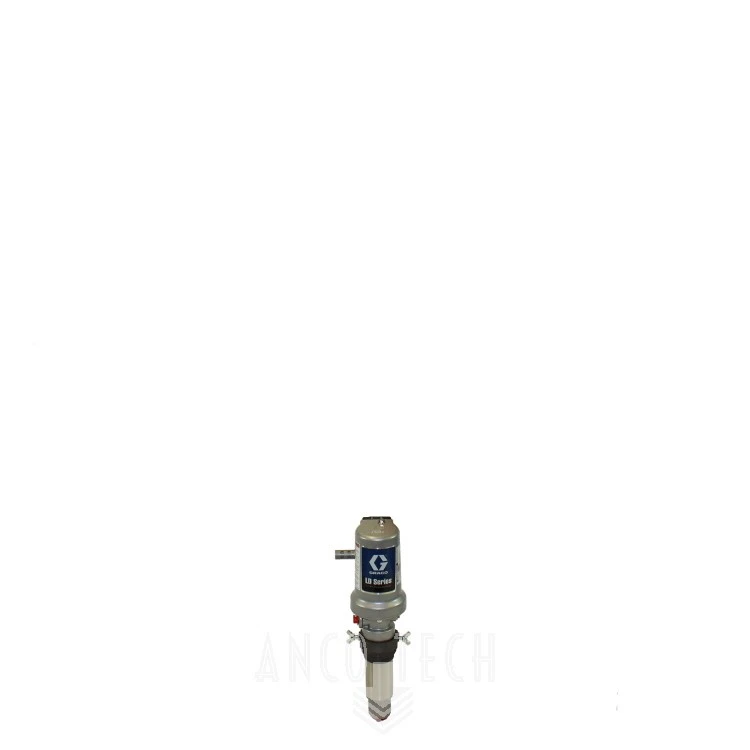

Graco LD pneumatic oil pump 5:1 Universal model 24G589
Universal Stubby pumptube 1"BSP connection.
Includes height adjustable (90mm) 2" bung bushing.
Maximum output 12.0 liter/min.
Stock quantity: 0
€489.00
Technical specifications
- Pressure ratio 5:1
- Pumptube Stubby 60-150mm 1"BSP
- Maximum output at free range 12.0 liter/min
- Output per cycle 100cc
- Output at 75 cycle per minute 7.5 liter
- Maximum air pressure 10.3 bar
- Maximum outgoing pressure 51.7 bar
- Air connection 1/4BSP
- Outlet 1/2BSP
