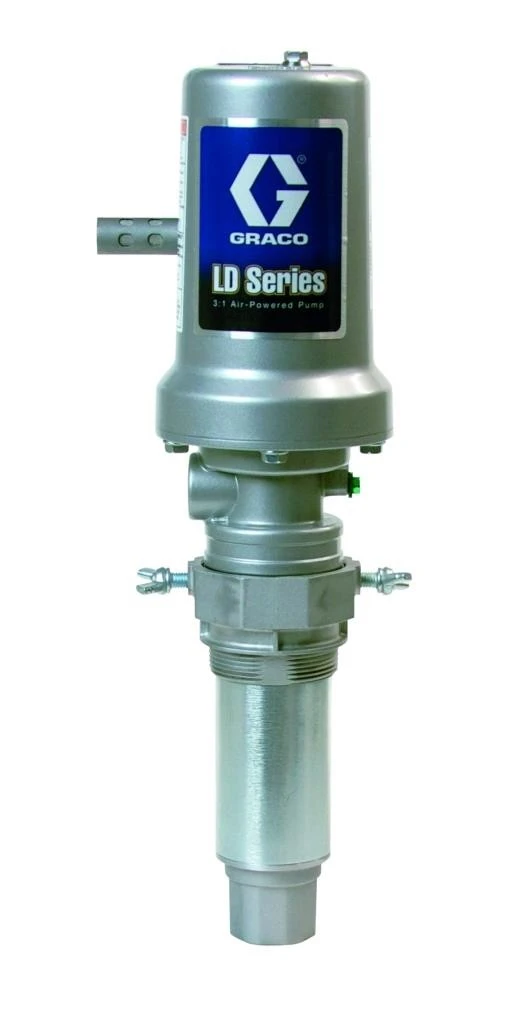

LD OILPUMP 3:1 STUBBY

Technical specifications

• Pressure ratio 3:1
• Pumptube Stubby 60-150mm 1"BSP
• Maximum output at free range 17.1 liter/min
• Output per cycle 142cc
• Output per 75 cycle per minute 10.7 liter
• Maximum air pressure 10.3 bar
• Maximum outgoing pressure 31.0 bar
• Air connection 1/4BSP
• Outlet 1/2BSP
