LD OILPUMP 3:1 MULTI LENGTH
SKU
3070010

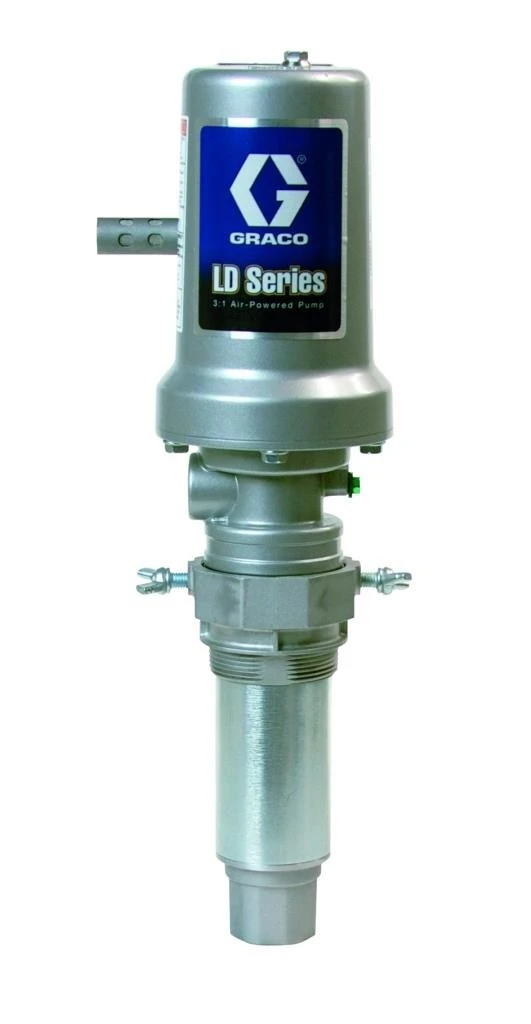

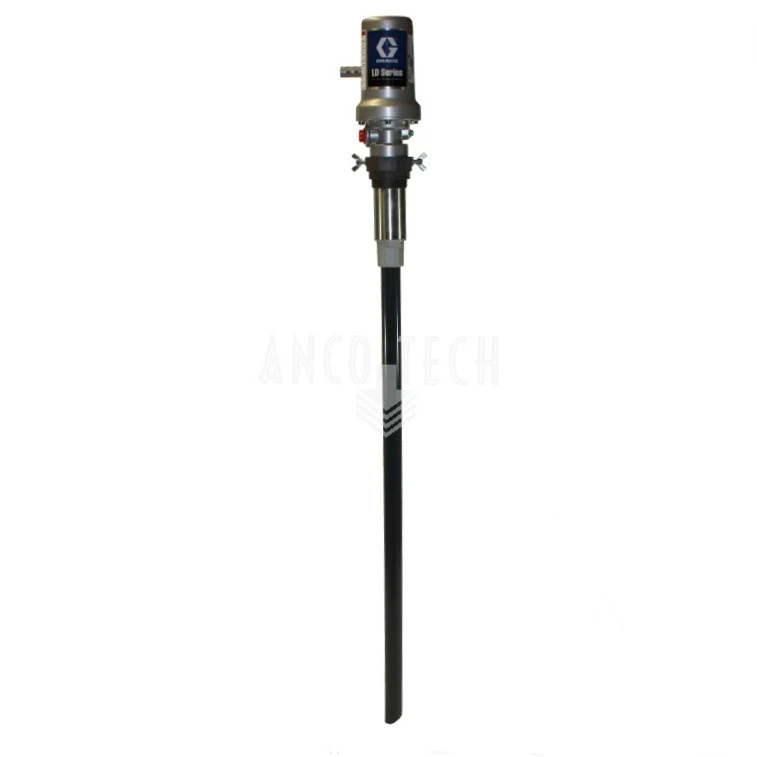

Graco LD pneumatic oil pump model 3:1 Multi length model 24G580
Pump tube thick walled PVC, adjustable in length from 165mm to 1030mm.
Includes height adjustable (90mm) 2" bung bushing.
Maximum output. 17.1 liter/min.
Stock quantity: 0
€465.00
Technical specifications
- Pressure ratio 3:1
- Pumptube thick-walled PVC, adjustable in length from 165 to 1030mm
- Maximum output at free range 17.1 liter/min
- Output per cycle 142cc
- Output at 75 cycle per minute 10.7 liter
- Maximum air pressure 10.3 bar
- Maximum outgoing pressure 31.0 bar
- Air connection 1/4BSP
- Outlet 1/2BSP
