LD OIL PUMP 3:1 200L DRUM
SKU
3070015

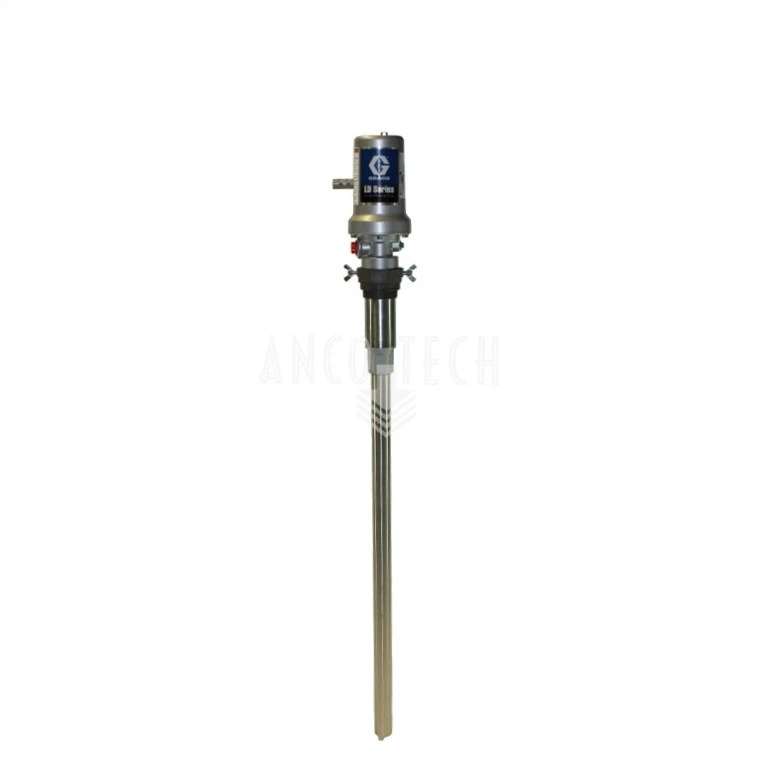

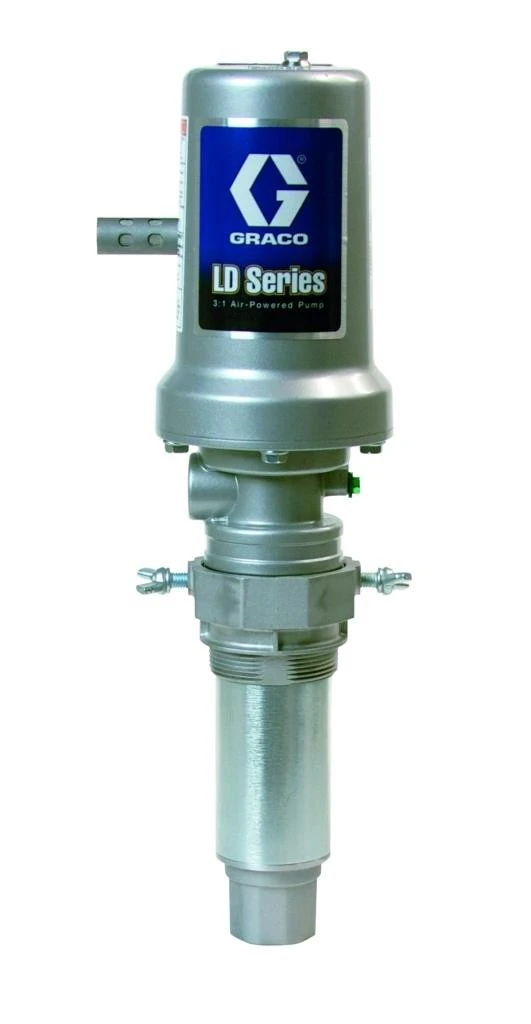

Graco LD pneumatic oil pump model 3:1 200L model 24G583
Pump tube 865mm for 200 liter drum.
Including height adjustable (90mm) 2" bung bushing.
Maximum output 17.1 liter/min.
Stock quantity: 0
€485.00
Technical specifications
- Pressure ratio 3:1
- Pump tube 865mm for 200 liter drum
- Maximum output at free range 17.1 liter/min
- Output per cycle 142cc
- Output at 75 cycle per minute 10.7 liter
- Maximum air pressure 10.3 bar
- Maximum outgoing pressure 31.0 bar
- Air connection 1/4BSP
- Outlet 1/2BSP
