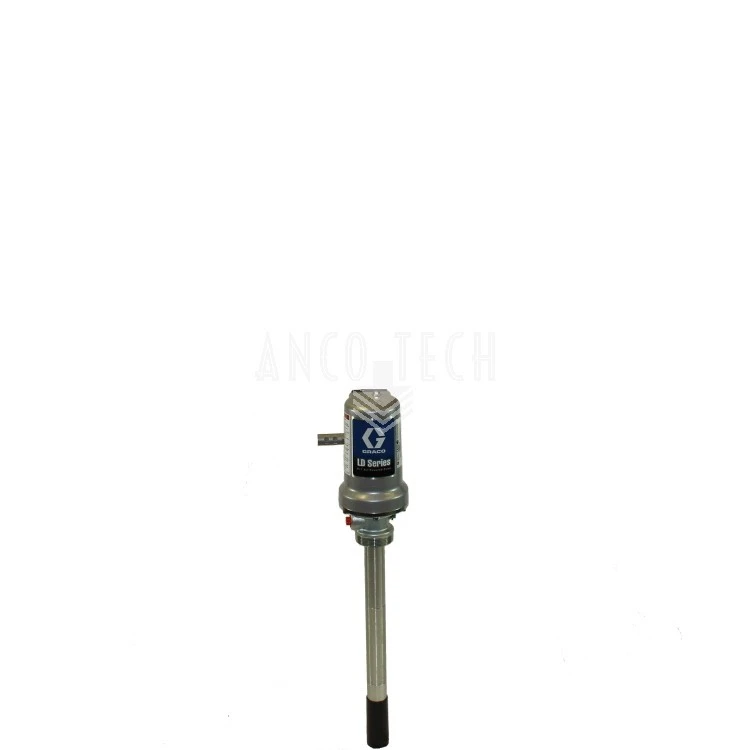

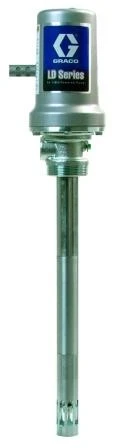

LD GREASE PUMP 50:1 10-30KG

Technical specifications

• Pressure ratio 50:1
• Length pump tube 370mm for 10-30kg drum
• Maximum output at free range 1165 gr/min
• Output per cycle 9.7 gr
• Output at 60 cycle per minute 582 gr
• Maximum air pressure 10.3 bar
• Maximum outer pressure 517 bar
• Air connection 1/4BSP
• Outlet 1/4BSP
