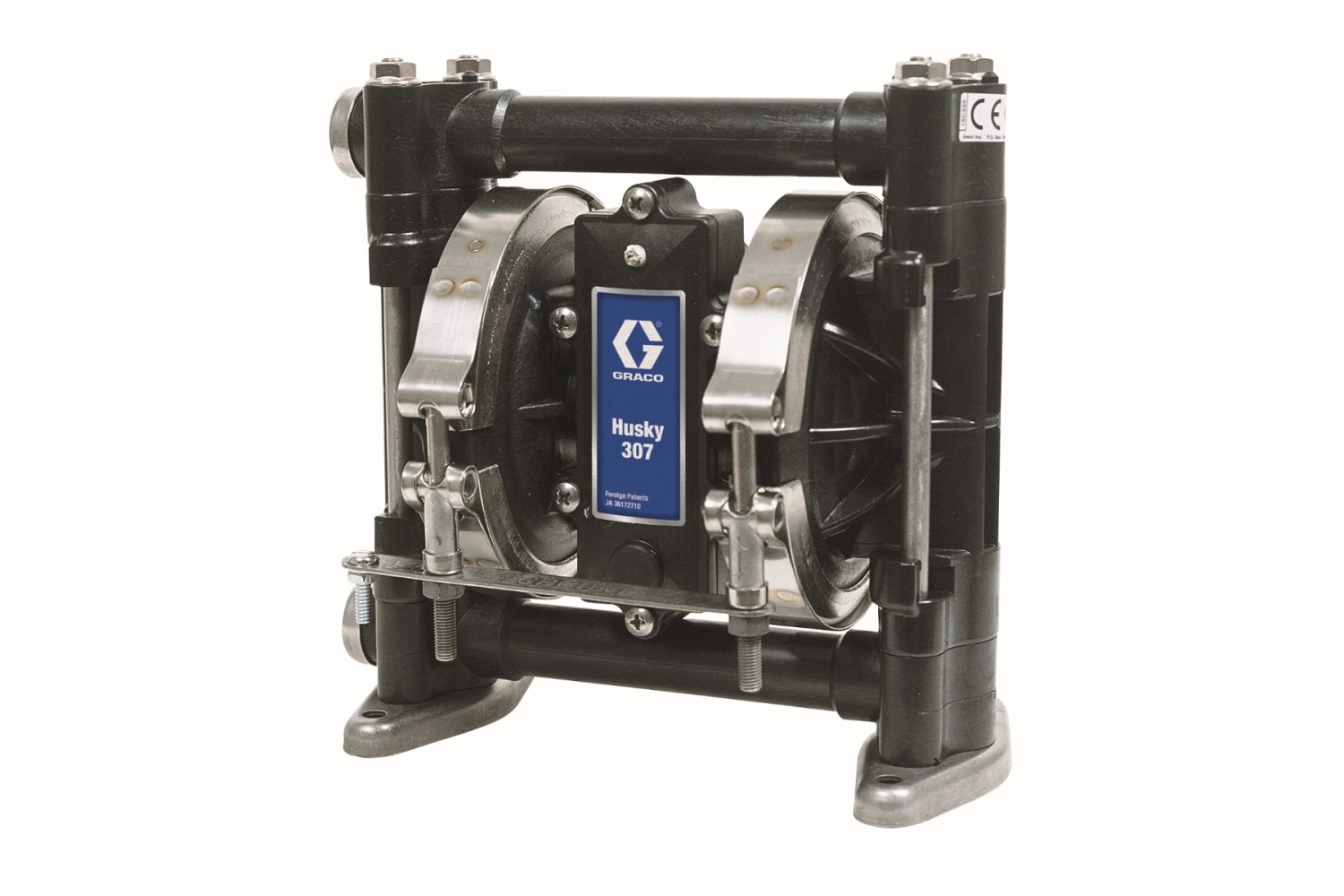

HUSKY 307 3/8" DIAPHRAGM PUMPS D31311
The Husky 307 air operated diaphragm pump features a fail-safe low pulsation air valve for a smooth and fast transition.
Typical applications include pumping and discharging oil, dosing and pumping fuel, dosing windscreen washing solutions, and dosing water and antifreeze. Some models are UL approved for pumping gasoline and gasoline/alcohol mixtures up to 10% ethanol, diesel, heating oil and lube oil.
- Design that allows quick and easy assembly and disassembly
- Easy-to-maintain air valve and ball check valves
- Operates at only 0.14 MPa (1.4 bar, 20 psi)
- Split manifold option to pump multiple liquids without mixing
- 3/8 inch (9.52 mm) end port
- Yield up to 7 gpm (26.5 lpm)
- Easy-to-maintain air valve and ball check valves
Graco Diaphragm pumps HUSKY 307, AC, SS, PTFE, PTFE, 3/8 NPT< /strong>
Graco Diaphragm Pump |
|
Model | Husky 307 |
Type | D31311 |
Maximum workload | 7 bar |
Maximum yield | 26.5 l/min |
Connection | 3/8 NPT |
Air connection | 1/4 |
Material |
|
Middle section | Polypropylene |
Pump sections | Acetal |
Sessions | stainless steel |
Bullets | PTFE |
Diaphragms | PTFE |
