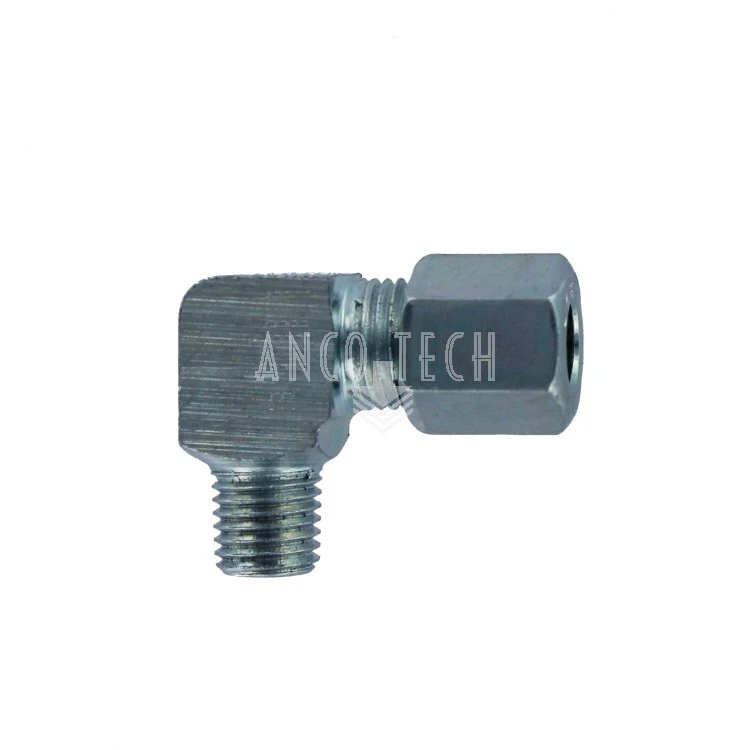

Elbow screw in connector WE6LL M8x1
| Screw type connector | |
| Model | WE 90° Angled Screw in |
| DIN | 2353 |
| Material | Zinc Plated |

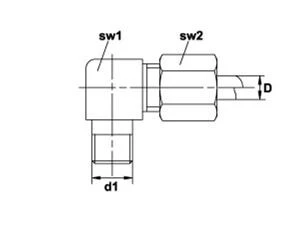

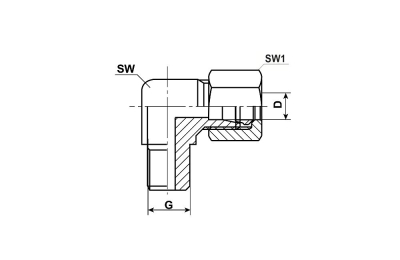

| Diameter D | Ø 6 mm |
| Thread size D1 | M8 x 1.0 |
| HEX size SW1 | 11 mm |
| HEX size SW2 | 12 mm |
| Lincoln Reference | 223-13023-3 |
| SKF Reference | 406-435 |
Specifications
- ID 325
- SKU 1141255
- Coupler material Zinc plated
- Hose diameter 6
- Lincoln Reference 223-13023-3
- SKF Reference 406-435
- HEX size SW1 11 mm
- HEX size SW2 12 mm
- Cutting ring fittings Right angle couplings
- Stock status In stock
