- ELBOW CONNECTOR WE6LL M10X1 SS

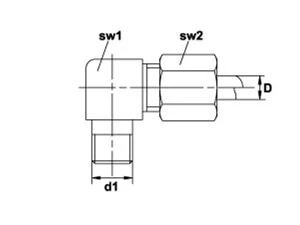

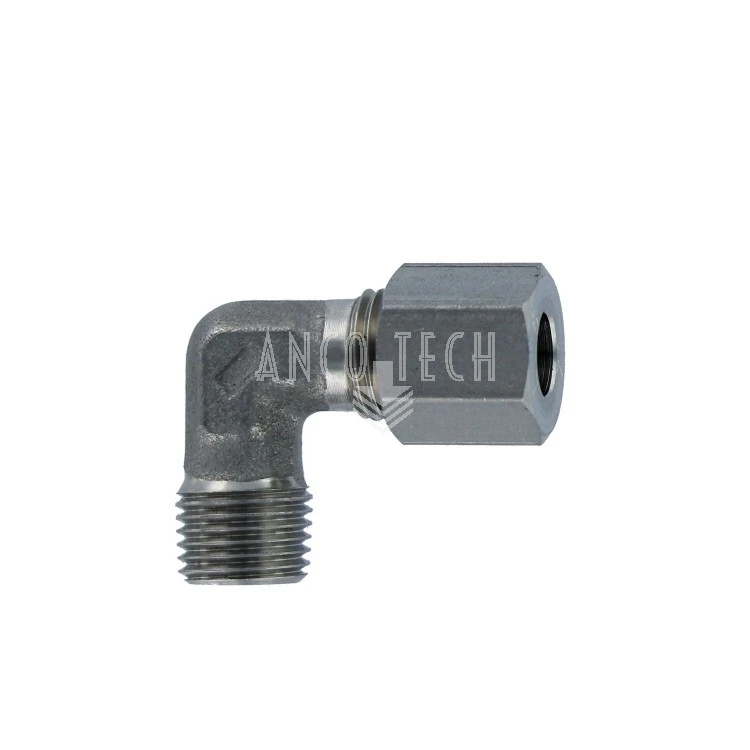

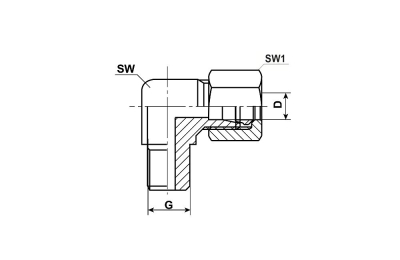

Elbow screw in connector WE6LL M10x1 SS
| Screw type connector | |
| Model | WE 90° Angled Screw in |
| DIN | 2353 |
| Material | SS 316 1.4571 |
| Diameter D | Ø 6 mm |
| Thread size D1 | M10 x 1.0 |
| HEX size SW1 | 11 mm |
| HEX size SW2 | 12 mm |
| Lincoln Reference | 223-13677-3 |
Specifications
- ID 338
- SKU 1141560
- Coupler material Stainless steel 316
- Hose diameter 6
- Lincoln Reference 223-13677-3
- HEX size SW1 11 mm
- HEX size SW2 12 mm
- Cutting ring fittings Right angle couplings
- Stock status In stock
