- ELBOW CONNECTOR WE4LL M8X1
Elbow screw in connector WE4LL M8x1

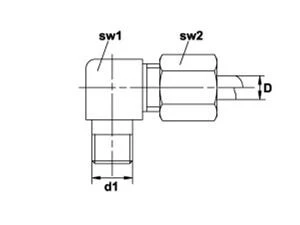

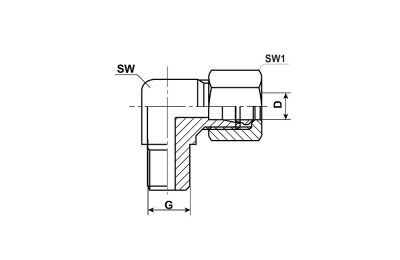

| Screw type connector | |
| Model | WE 90° Angled Screw in |
| DIN | 2353 |
| Material | Zinc Plated |
| Diameter D | Ø 4 mm |
| Thread size D1 | M8 x 1.0 |
| HEX size SW1 | 9 mm |
| HEX size SW2 | 10 mm |
| Lincoln Reference | 223-13021-5 |
| SKF Reference | 96-6204-0058 |
Specifications
- ID 322
- SKU 1141235
- Coupler material Zinc plated
- Fittings thread G M8x1
- Hose diameter 4
- Lincoln Reference 223-13021-5
- SKF Reference 96-6204-0058
- HEX size SW1 9 mm
- HEX size SW2 10 mm
- Cutting ring fittings Right angle couplings
- Stock status In stock
