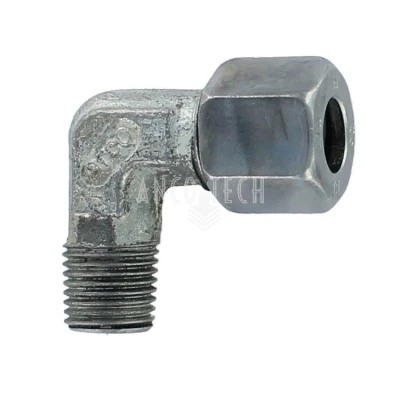

- ELBOW CONNECTOR WE10L 1/4 BSPT
| Screw type connector | |
| Model | WE 90° Angled Screw in |
| DIN | 2353 |
| Material | Zinc Plated |

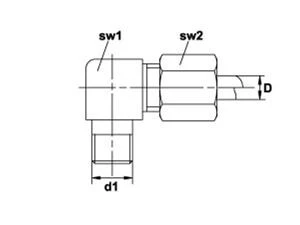

| Diameter D | Ø 10 mm |
| Thread size D1 | 1/4 Gas |
| HEX size SW1 | 14 mm |
| HEX size SW2 | 19 mm |
| Lincoln Reference | 223-13048-5 |
| SKF Reference | 410-405W |
Specifications
- ID 1499
- SKU 1141295
- Coupler material Zinc plated
- Tube diameter D 10
- Lincoln Reference 223-13048-5
- SKF Reference 410-405W
- HEX size SW1 14 mm
- HEX size SW2 19 mm
- Cutting ring fittings Right angle couplings
- Stock status In stock
