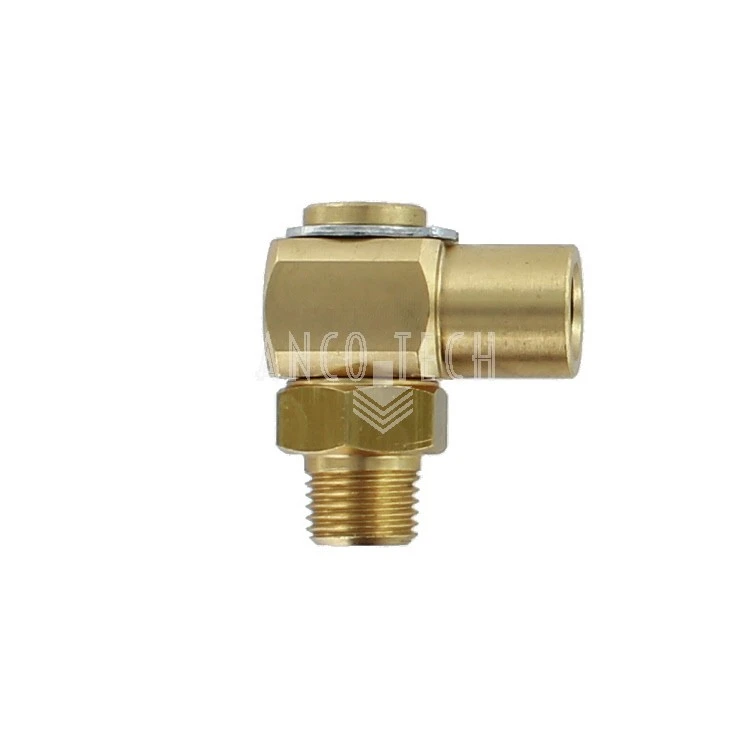

- ELBOW CONNECTOR ROTATABLE M10x1 BU M8x1

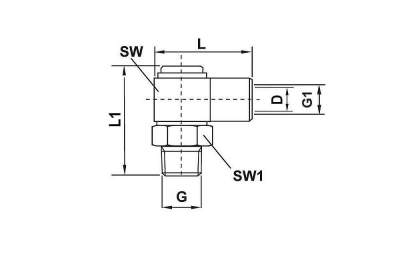

| Elbow connector rotatable | |
| Material | Brass / Zinc Plated |
| Diameter D | M8x1 Ø 4mm |
| Thread size D1 | M10x1 |
| HEX size SW1 | 15 mm |
| HEX size SW2 | 14 mm |
| Height H | 30 mm |
| Length L | 26.5 mm |
| SKF Reference | 405-551-049 |
Specifications
- ID 2234
- SKU 5014021
- Screw-in thread G M8x1
- Coupler material Brass
- Fittings thread G M10x1
- Tube diameter D 4
- Length L (mm) 26.5
- SKF Reference 405-551-049
- HEX size SW1 15 mm
- HEX size SW2 14 mm
- Length L1 (mm) 30
- Stock status In stock
