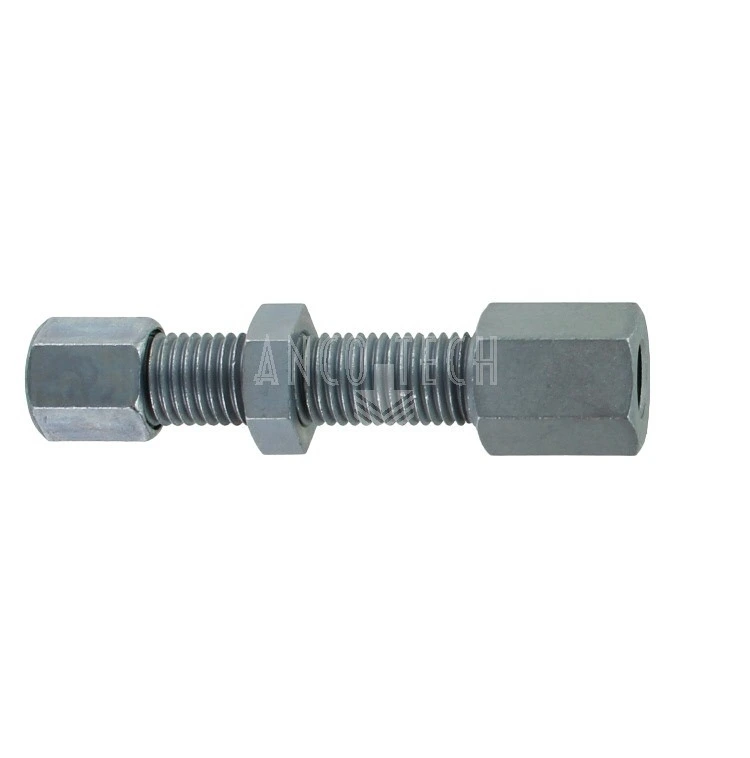

- BULKHEAD CONNECTOR 6L x FEMALE THREAD M10x1

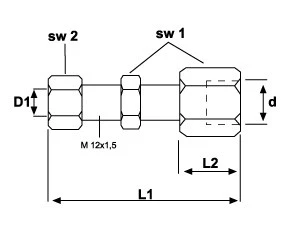

| Screw type connector | |
| Model | Bulkhead connector with female thread |
| Material | Zinc plated |
| Diameter D1 | Ø 6 mm |
| Female thread d | M10 x 1 |
| HEX size sw1 | 17 mm |
| HEX size sw2 | 14 mm |
| Length L1 | 66 mm |
| Length L2 | 20 mm |

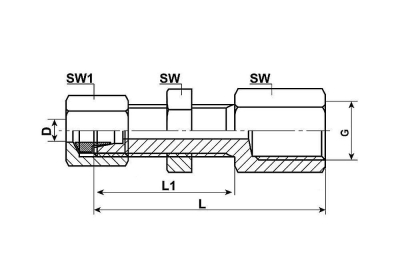

Specifications
- ID 834
- SKU 4012515
- DIN 2353
- Screw-in thread G M10x1
- Coupler material Zinc plated
- Fittings thread G M12x1.5
- Tube diameter D 6
- Length L (mm) 60
- HEX size SW 17 mm
- HEX size SW1 14 mm
- Cutting ring fittings Straight bulkhead connectors
- Length L1 (mm) 40
- Stock status In stock
